ТТМ-6901GS Antey

ТТМ-6901GS Antey

Description

Tracked snow and swamp-going vehicle TTM 6901GS with a dumping platform is designed to transport various cargoes, mainly on soils with low bearing capacity in off-road terrain, including virgin snow, loose sands, small calm water obstacles afloat and swamps of all types.

Special-purpose equipment:

A dumping platform is steel welded on a sub-frame.This platform is not intended to transport any dangerous goods

Type of drive for lifting the platform "backward" is hydraulic with a telescopic working body

Platform capacity is 8 m3


Specifications:


Average specific ground pressure, kgf/cm2

0,2

Gross vehicle weight, kg

18500

Engine

YaMZ-238B

300 HP.

Transmission

mechanical or

hydrostatic transmission

Number of seats in the cabin

3

Maximum land speed with full load, km/h

18

Swimming speed, km/h

5

Overall dimensions, mm:

length

8900

track width with extensions

4160

height

3500


Overall dimensions, mm:

3140

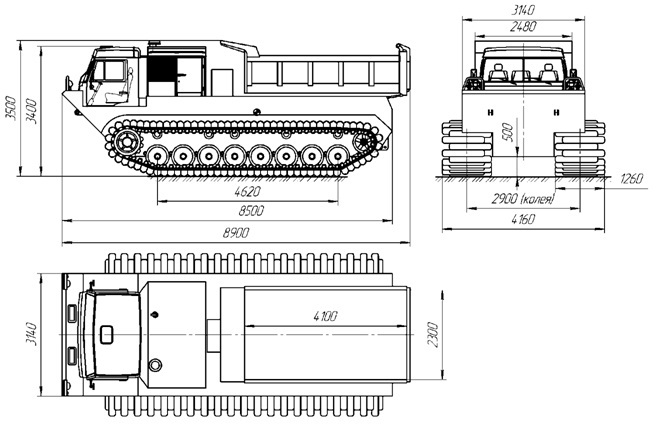

Main overall dimensions
