An amphibious rubber-caterpillar tracked transport-technological vehicle is used as a base chassis for mounting various technological equipment. TTM-6901 may be equipped at the Customer’s request with a self-contained hydrostatic transmission or a mechanical five-range transmission..

   The hydrostatic transmission advantages are:
– the vehicle control automation (joystick);
– smooth starting and continuous power flow, movement;
– the capability for obtaining large transmission ratios;
– the capability of ensuring an individual adjustable drive for each caterpillar;
– the capability to turn on the spot (because of the rotation of caterpillars in opposite directions);
– increase in average off-road speeds due to the optimal use of engine power

Specifications:

Average specific ground pressure, kgf/cm2	0,2
Capacity, kg	10000
Curb weight, kg	17000
Engine	YaMZ-238B 300 HP
Transmission	mechanical or     hydrostatic transmission
Number of seats in the cabin	3
Maximum land speed with full load, km/h	18
Swimming speed, km/h	5
Overall dimensions, mm:
length	8700
track width with extensions	4160
height	3400
Overall dimensions, mm:	3140
Dimensions of the cargo platform, mm:	6700 х 3020

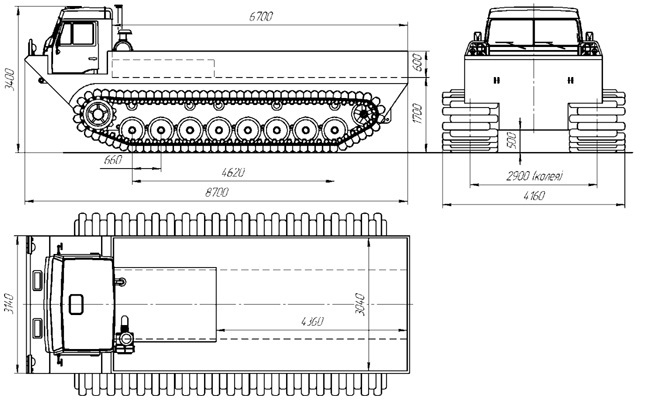

Main overall dimensions
