ТТМ-6901GM Antey

ТТМ-6901GM Antey

Description
Amphibious vehicle TTM-6901GM is equipped with a truck mounted crane IF300S-15. It is designed for loading, unloading and delivery of various cargoes in off-road terrain, including all types of swamps and virgin snow.  To ensure the stability during operation, the crane has two retractable supports which slide in travelling position to the body dimensions and recline upwards.

   Specifications of crane IF300S-15:
– handling radius of the crane boom is 8.53 m;
– load moment is 27 t m;
– max net load capacity is 9 t;
– maximum lifting height is 11.1 m;
– maximum boom-out is 8.00 m;
– maximum lowering depth is 2.20 m;
– ambient working temperature ranging from minus 45° to +40°С;
– hydraulic control method;
– hydraulic support extending.

Specifications:

Average specific ground pressure, kgf/cm2

0,2

Gross vehicle weight, kg

24600

Capacity, kg

4000

Engine

YaMZ-238B

300 HP

Transmission

mechanical or

hydrostatic transmission

Number of seats in the cabin

3

Maximum land speed with full load, km/h

18

Swimming speed, km/h

5

Overall dimensions, mm:

length

9900

track width with extensions

4160

height

3950


Overall dimensions, mm:

3140

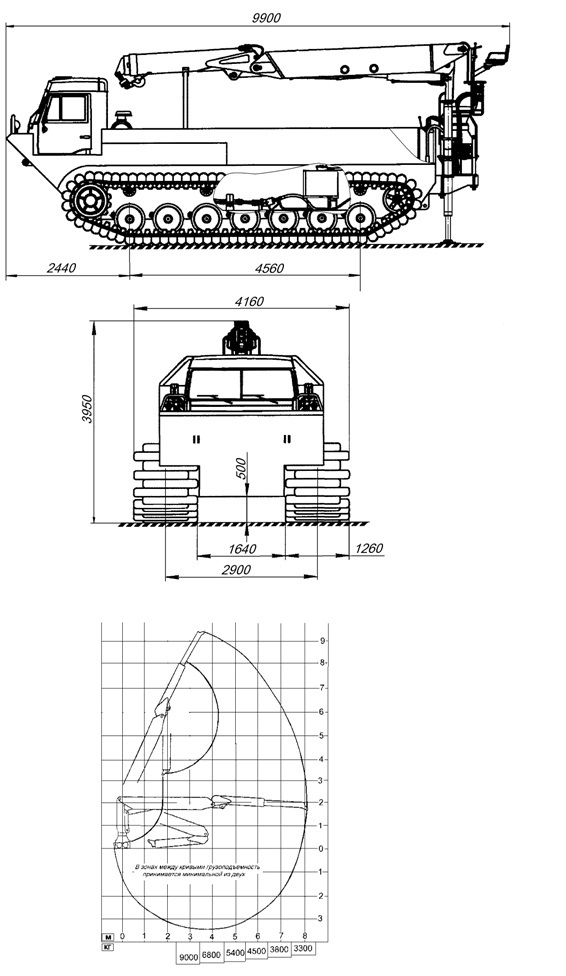

Main overall dimensions
