ТТМ-6901NU Antey

ТТМ-6901NU Antey

Description
Tracked amphibious snow and swamp-going vehicle TTM-6901NU with a pump unit is designed for pumping oil during the emptying of an oil pipeline, for repairing, gathering of oil and oil products and pumping thereof into main pipelines; for filling oil pipelines with water when preparing for hydraulic tests; as a temporary oil pumping station of a main oil pipeline in the field and in case of pumping equipment failure in fields and at oil depots.

   The vehicle equipment includes:
– main pump TsNSnt 180-467MT with the rated pumping capacity of 180 m3/h and the rated head of 467 m;
– charge pump TsSN 300x50 with the rated pumping capacity of 320 m3/h and the suction head of 8 m;
– vacuum pump VVN1-3 with the capacity of 40 m3/min;
– generator BG-100 with the power of 100 kW;
– remote lighting equipment – searchlights PKS-VM-250;
– crane IM-40, Capacity, 990 kg

Specifications

Average specific ground pressure, kgf/cm2

0,2

Gross vehicle weight, kg

27500

Engine

YaMZ-238B

300 HP

Transmission

mechanical or

hydrostatic transmission

Number of seats in the cabin

3

Maximum land speed with full load, km/h

18

Swimming speed, km/h

5

Overall dimensions, mm:

length

9900

track width with extensions

4160

height

4000


Overall dimensions, mm:

3140

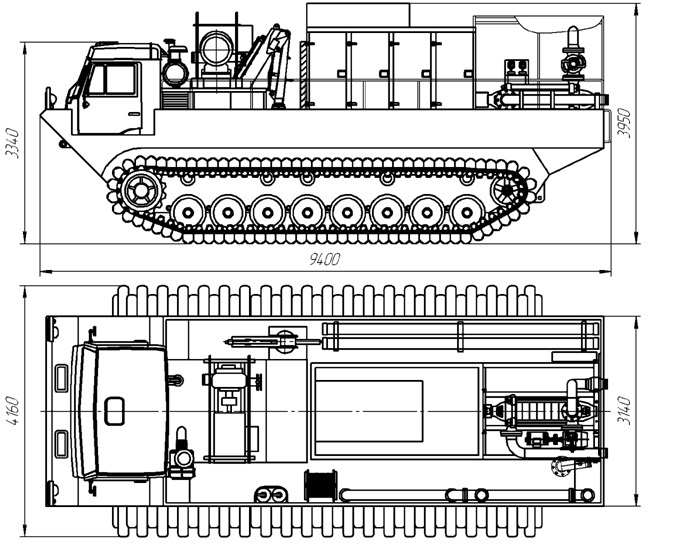

Main overall dimensions
