Ski-tracked snow-going vehicle ТТМ-1901

Ski-tracked snow-going vehicle ТТМ-1901

Description

The Berkut ski-tracked snowmobile TTM-1901 with a two-seat heated cabin is designed for the maintenance and visual inspection of the linear part of the main pipelines, power transmission lines, communication lines and for the protection of different-purpose facilities.

Snowmobiles TTM provide comfortable conditions of the passenger car level, the high stability in off-roading and cross-country capability on virgin snow without limiting the snow cover height.

The upgraded snowmobile version has the following improved performance and consumer properties:

– a cabin and an engine hood are made of composite materials;

– the suspension adaptation to the road surface is  significantly enhanced ;

– the load on steered skis remains almost constant and does not depend on road inequalities;

– a unique steering linkage with hydraulic booster;

– air vents are completely prevented from clogging with snow;

– more ergonomic and comfortable interior.


Specifications:

Average specific ground pressure, kgf/cm2

0,06

Curb weight, kg

1100

Engine

VAZ

87 HP.

Transmission

5-speed, mechanical

Number of seats in the cabin

2

Maximum speed, km/h

60

Overall dimensions, mm:

length

3987

Width

1750

height

1950

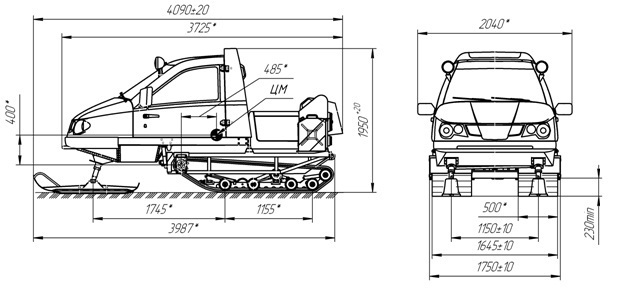

Main overall dimensions:
